E-OCD II
Description

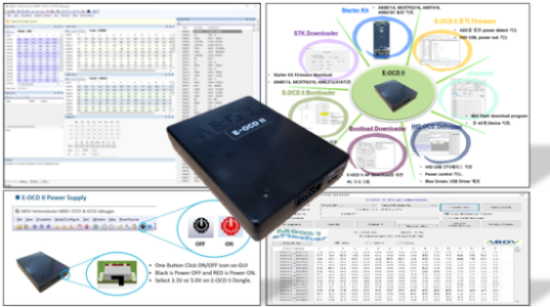

E-OCD stands for "Enhanced On-Chip Debugger". E-OCD II is a debugger tool for ABOV 8-bit MCUs.
It is dedicated to on-board programming and debugging through OCD serial interface, which uses 2-pin (DSCL, DSDA) or 3-pin (DSCL, DSDA, RunFlag). The E-OCD II debugger supports all 8051 8-bit devices of ABOV.
In particular, additional protection circuits are added to the input and output ports of the E-OCD II to improve durability and safety of the board-level manufacturing stage.
It has high driver stability, simple power function and more convenient functions.
* This product is for development and is not suitable for mass production environment.
Features
▶ Debug emulator device only for ABOV 8-bit MCUs
▶ Supports ABOV 94/95/96/97 series of 8-bit MCUs (compatible with OCD I and OCD II).
▶ Supports debugging and onboard programming.
▶ 10-pin external connector for debugging and programming
▶ Supports ISP through the dedicated serial interface (DSCL, DSDA).
▶ High driver compatibility and stability by using USB HID communication
▶ Additional Level Shift IC to the communication port for low level transmission
▶ Improved external I/O port protection circuit (including an ESD protection circuit)
▶ Supports power supply control to the target board (max. 50mA).
▶ Target system operating voltage: 3V to 6V
▶ Supports Low Voltage Communication with 1.0V to 5.5V.
All Tools & Support (Downloadable)
-
Executable File
Title Type Language Version Download aFlasher8 (8-bit Flash Downloader)
Eng 1.008.00
OCD Debugger 32-bit
Eng 2.047.00
OCD Debugger 64-bit
Eng 2.048.00
-
Manual
Title Type Language Version Download Starter Kit E-OCD Hardware Manual
Eng 1.0.0
E-OCD II Debugger Manual
Eng 1.0.2
-
History File
Title Type Language Version Download OCD Debugger History
Eng 2.047.00
aFlasher8 History
Eng 1.006.00
-
Supplement File
Title Type Language Version Download DLL file for KEIL 8051 Debugger
Eng 2.047.00
DLL file for IAR EW8051 V10.1x/V10.2x
Eng 2.047.00
DLL file for IAR EW8051 V10.3x/V10.4x
Eng 2.047.00
* For further information on the devices, please contact: sales_gl@abov.co.kr
