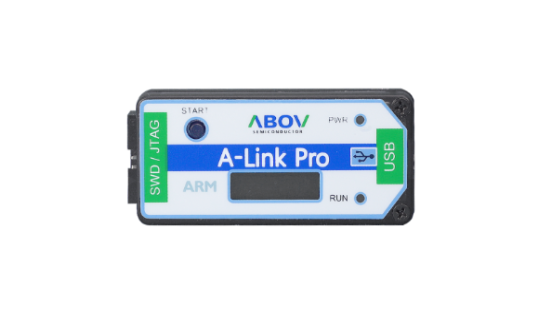

A-LinkPro
Description
A-LinkPro is a USB CMSIS-DAP debugger(which uses SWD interface) and Programmer Tool.
It can be used as a debugging adaptor for ARM Cortex-M microcontroller or a simple on-board programmer, and supports KEIL, IAR, and Eclipse GDB.
The A-LinkPro has a USB and a Serial Wire Debug (SWD) interface: When developing an application, the USB connector is connected to the PC host and SWD interface is connected to the target device.
If the target device is programmed without a PC (standalone mode), the power for a target board should be supplied from USB port.
This product is for development and is not suitable for mass production environment.
Features
▶ Compliance with ARM CMSIS-DAP standard
▶ HID class interface with PC
▶ Small exterior, simple debugger dongle type (PCB size: 45mm x 23mm)
▶ SWD interface using 2-wire signal (SWCLK, SWDIO)
▶ Supports a dedicated F/W Downloader Program for A-LinkPro.
▶ Compatible with CMSIS-DAP that is used in KEIL, IAR, etc.
▶ Standalone Programmer with OLED display
All Tools & Support (Downloadable)
-
Executable File
Title Type Language Version Download aFlasher32 Executable
Eng 2.010.00
-
Manual
Title Type Language Version Download aFlasher32 Manual
Eng 2.0.0
A-Link H/W Manual
Eng 1.000.00
-
History File
Title Type Language Version Download aFlasher32 History
Eng 2.006.00
* For further information on the devices, please contact: sales_gl@abov.co.kr
