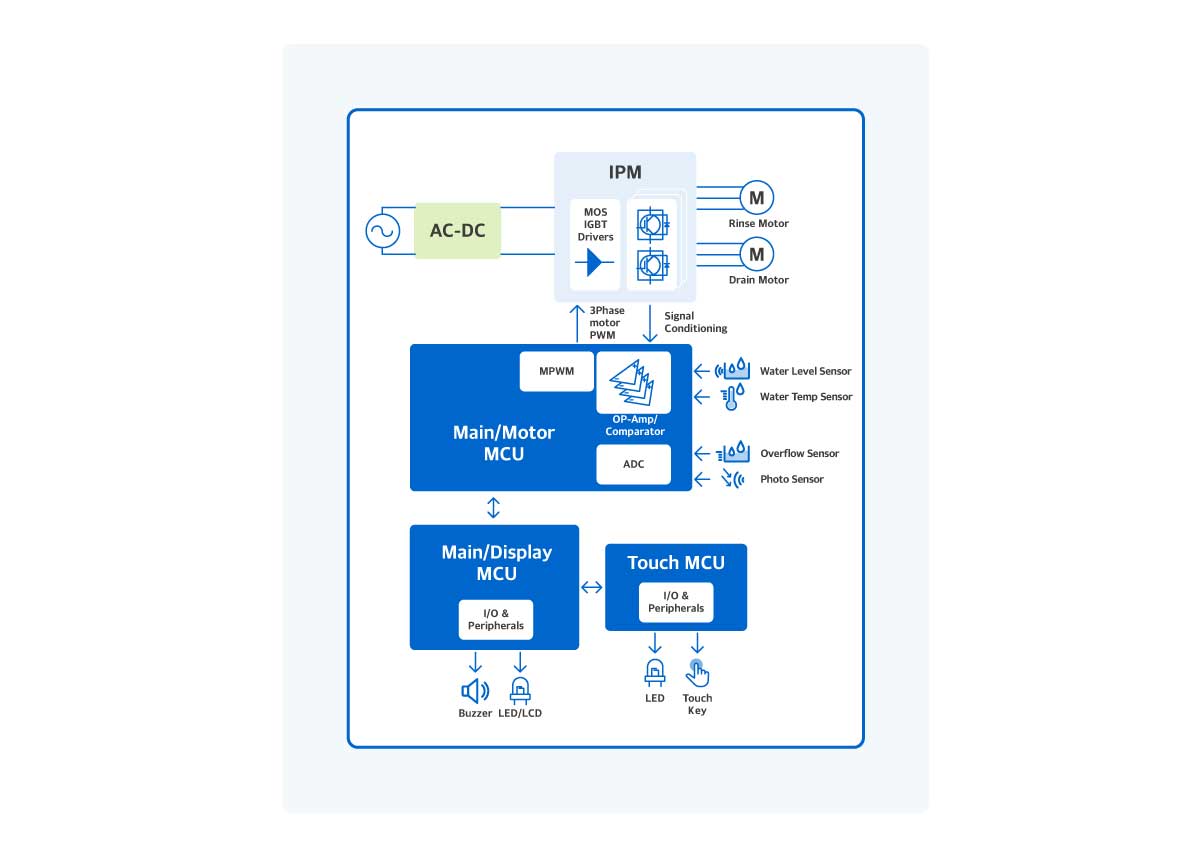

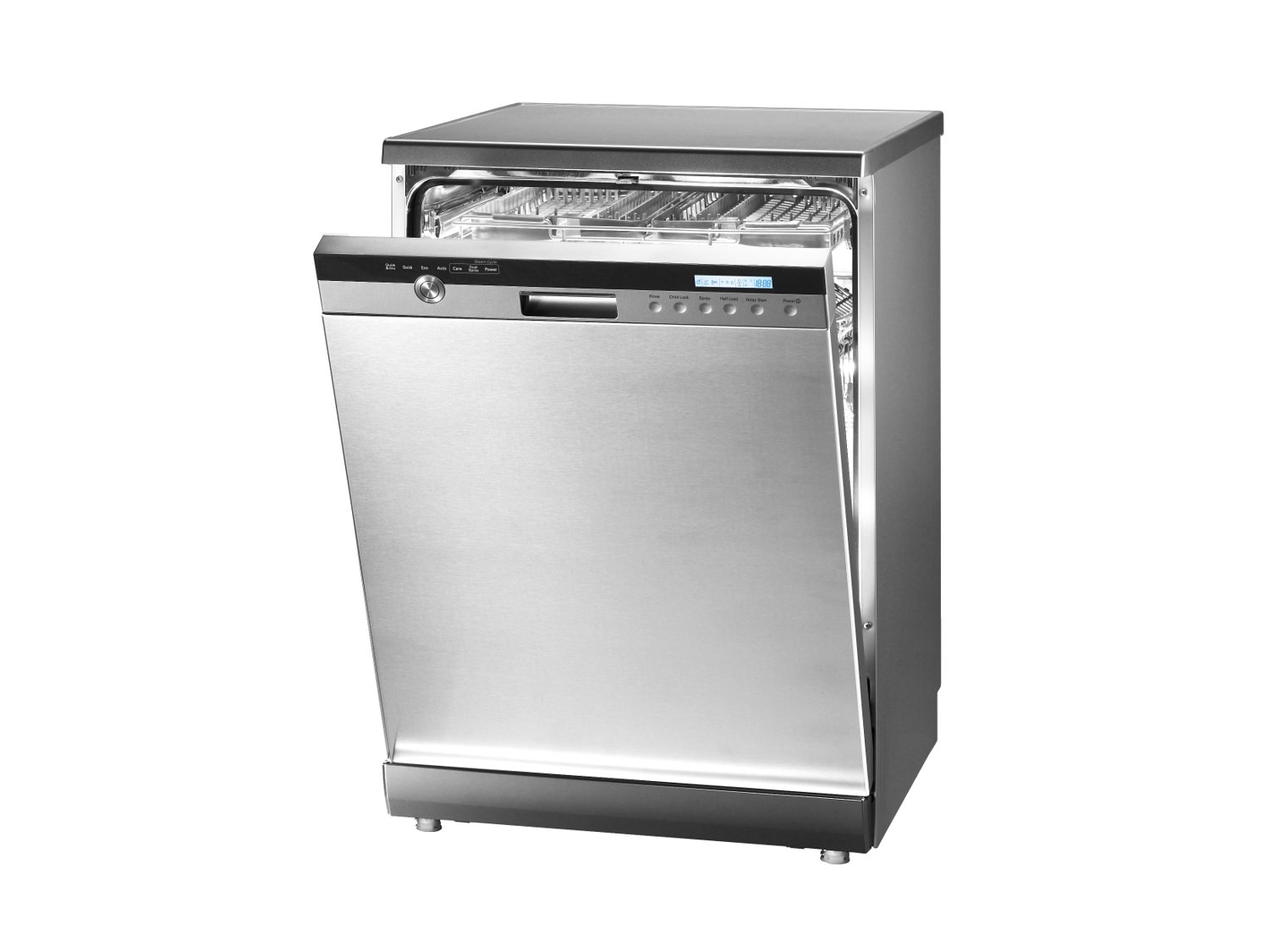

ABOV offers a variety of microcontrollers for Dishwasher Control to realize more energy savings and effective systems.
ABOV’s Motor MCU can control inverters for a water-pump, fan and valve controls.
ABOV's Touch MCU includes our own Noise-Resistant Touch Engine, and specifically, provides a solution for water film phenomenon. According to the user purpose, it can be a Logic type with 8-ch to 12-ch or an MCU type with 8-ch to 24-ch.
| Function | Recommended Products | Feature |
|---|---|---|
| Main & Display Solution | G1 (Cortex-M0+, Basic) | Cortex M0+, 40MHz, 16~64KB Flash, LCD/LED Control |
| G2 (Cortex-M0+, up to 48MHz) | Cortex M0+, 48MHz, 32~256KB Flash, 1% IRC, LCD/LED Control | |
| G3 (Cortex-M0+, 48MHz, USB option) | Cortex M0+, 48MHz, 64~256KB Flas, LCD/LED Control, USB option | |
| G5 (Cortex-M3, up to 75MHz) | Cortex-M3, 75MHz, 128~384KB Flash, UL60730 | |
| M (Cortex-M0+/M3/M4F, High-Performance) | Cortex-M0+/M3/M4F, Max 140MHz, 64KB to 1024KB, -40℃ to +105℃ | |
| L1 (Cortex-M0+, Low-Power) | Cortex M0+, CM0+, 32MHz, 16~64KB Flash, ISO-7816-3, LCD Control | |
| L2 (Cortex-M0+, Low-Power) | Cortex M0+, CM0+, 32MHz, 12~128KB Flash, ISO-7816-3(1-ch), LCD Control | |
| Motor Solution | FOC Solution | Cortex-M0+/M3/M4F, 40MHz~120MHz, High Speed ADC 1.5Msps, -40℃ ~ +105℃, FOC Algorithm (1/3 Shunt) |
| BLDC Solution | M8051/Cortex M0+, Touch 8-ch ~ 24-ch, 16 ~ 256KB Flash, Logic Touch. 8/12-ch, I2C | |
| Sensor Solution | Home Appliance Touch Solution | M8051/Cortex M0+, Touch 8-ch ~ 24-ch, 16 ~ 256KB Flash, Logic Touch. 8/12-ch, I2C |
