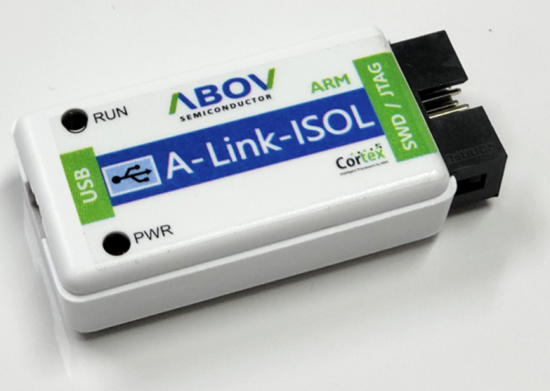

A-Link-ISOL is a USB CMSIS-DAP debugger (which uses SWD interface).
It can be used as a debugging adaptor for ARM Cortex-M microcontrollers, and supports KEIL, IAR, and Eclipse GDB.
The A-Link-ISOL has a USB and a Serial Wire Debug (SWD) interface
When developing an application, the USB connector is connected to the PC host and SWD interface is connected to the target device.
A-Link-ISOL is added USB Isolation circuit. The Isolation circuit prevents power conflicts between the host PC and the target device from AC power
* This product is for development and is not suitable for mass production environment.
▶ Compliance with ARM CMSIS-DAP standard
▶ HID class interface with PC ▶ Small exterior, simple debugger dongle type
▶ SWD interface using 2-wire signal (SWCLK, SWDIO) ▶ Compatible with CMSIS-DAP that is used in KEIL, IAR, etc.
▶ 28mm x 57mm x 14mm
▶ Included USB Isolation Circuit
| Title | Type | Language | Version | Download |
|---|---|---|---|---|
| aFlasher32 Executable |
|
Eng | 2.018.00 |
|
| Title | Type | Language | Version | Download |
|---|---|---|---|---|
| aFlasher32 Manual |
|
Eng | 2.0.0 |
|
| A-Link H/W Manual |
|
Eng | 1.000.00 |
|
| Title | Type | Language | Version | Download |
|---|---|---|---|---|
| aFlasher32 History |
|
Eng | 2.018.00 |
|
* For further information on the products, please contact: sales_gl@abov.co.kr
