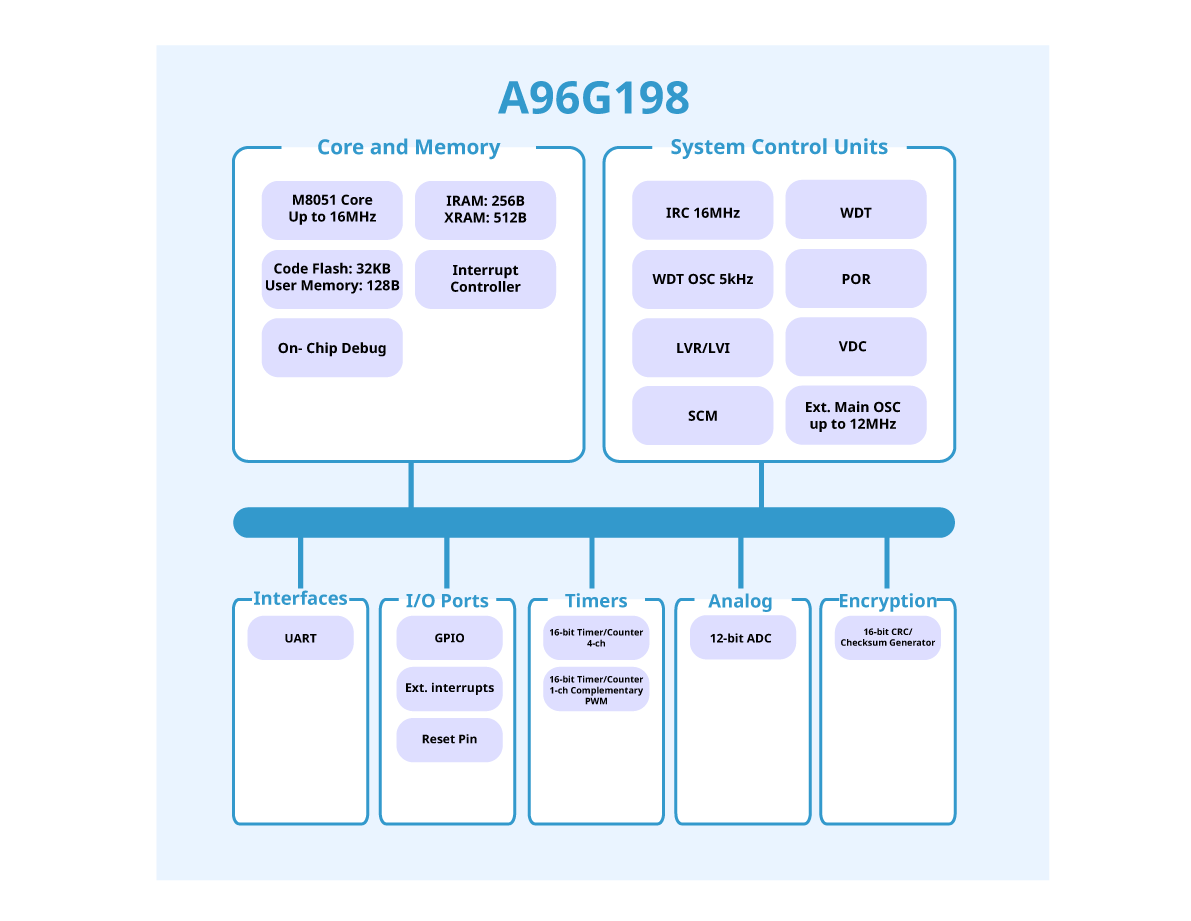

The A96G198 is an advanced CMOS 8-bit microcontroller with 32 Kbytes of flash memory. This is a powerful microcontroller which provides a highly flexible and cost-effective solution to many embedded control applications. This provides the following features : 32 Kbytes of flash memory, 256 bytes of IRAM, 512 bytes of XRAM, general purpose I/O, basic interval timer, watchdog timer, 16-bit timer/counter, 16-bit PPG output, 16-bit PWM output, buzzer driving port, UART, system clock monitoring function, 16-bit CRC/Checksum generator, 12-bit A/D converter, on-chip POR, LVR, LVI, onchip oscillator and clock circuitry. The A96G198 also supports power saving modes to reduce power consumption.

Product Spec

Availability	Mass Production
Core	8051
Op. Freq. (MHz)	16
Flash (Kbytes)	32
RAM (Kbytes)	0.75
E2P (Bytes)
Pin Count	32
Max I/O Pins	30
Timer (8-bit)
Timer (16-bit)	5
Watch Dog Timer	1
PWM (8-bit)
PWM (10-bit)
PWM (16-bit)	5
3-phase PWM (10-bit)
3-phase PWM (16-bit)
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	8
ADC Speed (ksps)	50
Number of OP Amp.
IR Learning Op. AMP	N
Number of PGA
Number of Comparator
USART (ch)
UART (ch)	2
SPI (ch)
I2C (ch)
I2S (ch)
USI
SIO (ch)
LCD Driver
LED Driver / High current port
IR Driver TR	N
HSI Freq. (MHz)
HSI Err. (±%) 85	5
HSI Err. (±%) 105
Sub. X-tal Support	N
Ext. X-tal Support	Y
Touch Key (ch)
Key Scan : M-Key	N
Key Scan : T-Key	N
ISP	Y
CRC	Y
Carrier Generator
Min Op Voltage (V)	1.8
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	105
Remarks
Package	32-LQFP
Package Size (mm)	-
