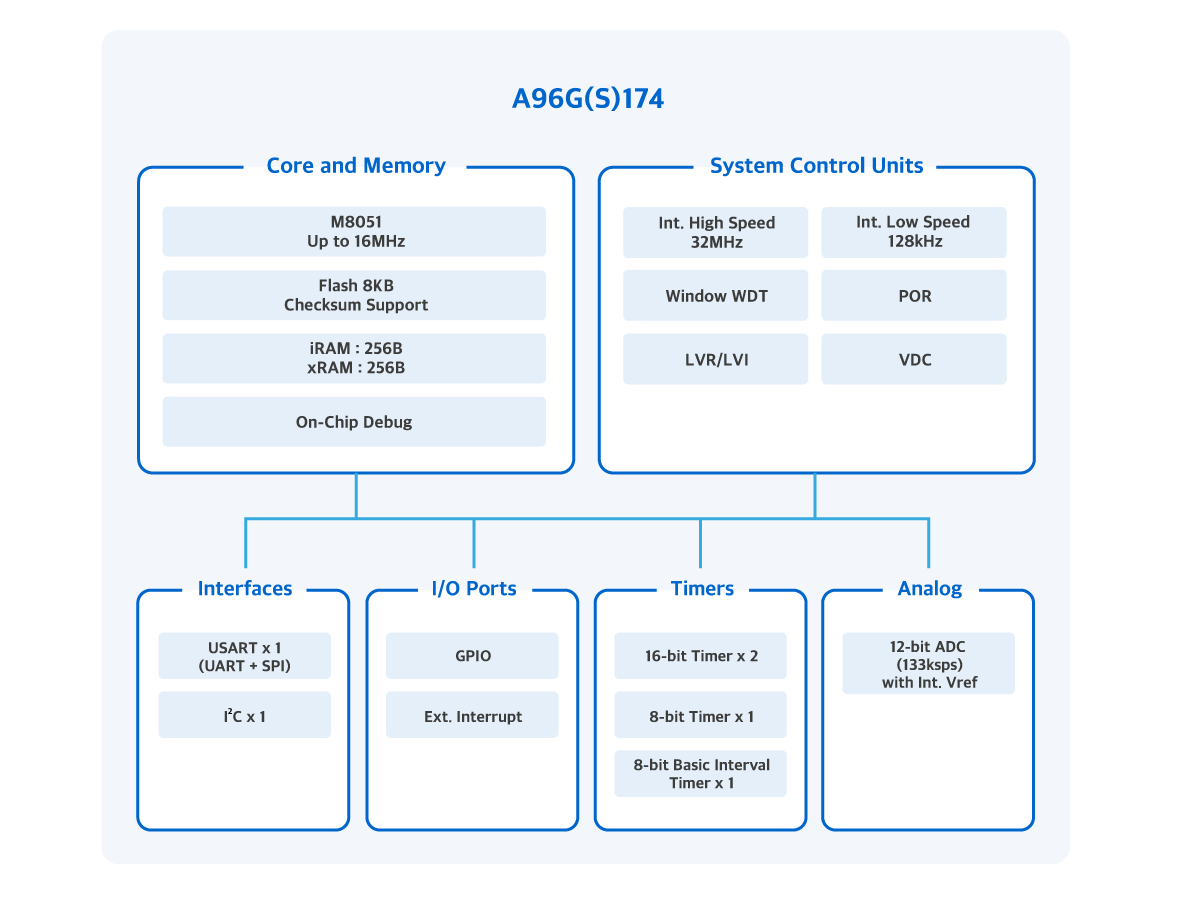

A96G174 is an advanced CMOS 8-bit microcontroller with 8 Kbytes of Flash. This powerful microcontroller provides a highly flexible and cost effective solution to many embedded control applications. The product offers the following features : 8 Kbytes of Flash, 256 Bytes of iRAM, 256 Bytes of xRAM, general purpose I/O, basic interval timer, WDT, 8/16-bit timer/counter, 16-bit PPG output, 8-bit PWM output, USART, I2C, 12-bit ADC, on-chip POR, LVR, LVI, on-chip oscillator and clock circuitry. A96G174 also supports power saving modes to reduce power consumption.

Product Spec

Availability	Mass Production
Core	8051
Op. Freq. (MHz)	16
Flash (Kbytes)	8
RAM (Kbytes)	0.5
E2P (Bytes)	0
Pin Count	20
Max I/O Pins	18
Timer (8-bit)	1
Timer (16-bit)	2
Watch Dog Timer	1
PWM (8-bit)	1
PWM (10-bit)	0
PWM (16-bit)	2
3-phase PWM (10-bit)	0
3-phase PWM (16-bit)	0
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	15
ADC Speed (ksps)	133
Number of OP Amp.	0
IR Learning Op. AMP	N
Number of PGA	0
Number of Comparator	0
USART (ch)	1
UART (ch)	0
SPI (ch)	0
I2C (ch)	1
I2S (ch)	0
USI	0
SIO (ch)	0
LCD Driver	0
LED Driver / High current port	0
IR Driver TR	N
HSI Freq. (MHz)	32
HSI Err. (±%) 85	2.5
HSI Err. (±%) 105	5
Sub. X-tal Support	N
Ext. X-tal Support	N
Touch Key (ch)	0
Key Scan : M-Key	N
Key Scan : T-Key	N
ISP	Y
CRC	N
Carrier Generator	N
Min Op Voltage (V)	1.8
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	85 / 105
Remarks	Vref, Window WDT
Package	20-TSSOP
Package Size (mm)	173mil
