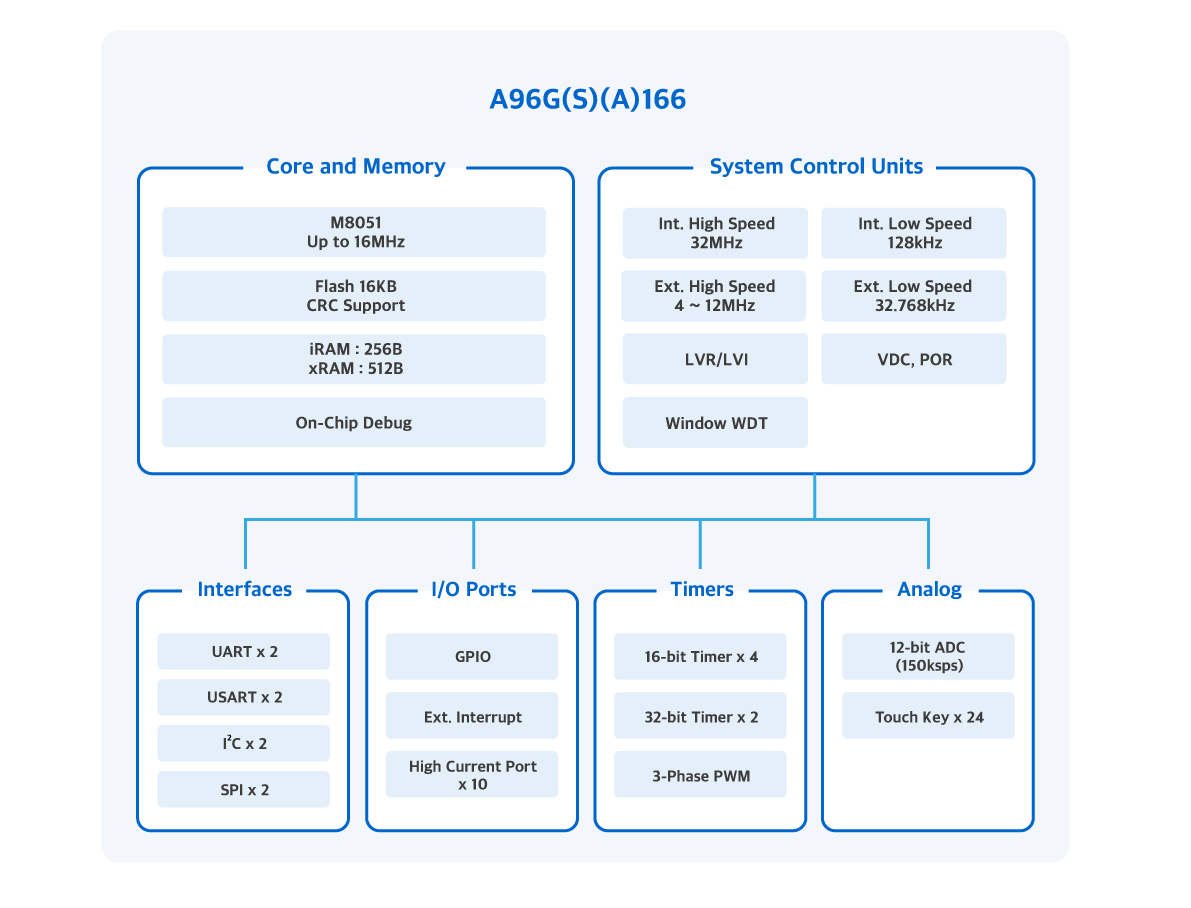

A96G166 is an advanced CMOS 8-bit microcontroller with 16 Kbytes of Flash. This is a powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications. The product offers the following features : 16 Kbytes of Flash, 256 Bytes of iRAM, 512 Bytes of xRAM, general purpose I/O, window WDT, basic interval timer, watch timer, 8/16-bit timer/counter, 16-bit PPG output, 8/16-bit PWM output, USART, I2C, 12-bit ADC, on-chip POR, LVR, LVI, on-chip oscillator and clock circuitry. A96G166 also supports power saving modes to reduce power consumption.

Product Spec

Availability	Mass Production
Core	8051
Op. Freq. (MHz)	16
Flash (Kbytes)	16
RAM (Kbytes)	0.75
E2P (Bytes)	0
Pin Count	24
Max I/O Pins	22
Timer (8-bit)	1
Timer (16-bit)	2
Watch Dog Timer	1
PWM (8-bit)	1
PWM (10-bit)	0
PWM (16-bit)	2
3-phase PWM (10-bit)	0
3-phase PWM (16-bit)	0
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	11
ADC Speed (ksps)	133
Number of OP Amp.	0
IR Learning Op. AMP	N
Number of PGA	0
Number of Comparator	0
USART (ch)	2
UART (ch)	0
SPI (ch)	0
I2C (ch)	1
I2S (ch)	0
USI	0
SIO (ch)	0
LCD Driver	0
LED Driver / High current port	4
IR Driver TR	N
HSI Freq. (MHz)	32
HSI Err. (±%) 85	3
HSI Err. (±%) 105	5
Sub. X-tal Support	Y
Ext. X-tal Support	Y
Touch Key (ch)	0
Key Scan : M-Key	N
Key Scan : T-Key	N
ISP	Y
CRC	Y
Carrier Generator	N
Min Op Voltage (V)	1.8
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	85 / 105
Remarks	Buzzer, HW CRC-16, Window WDT
Package	24-QFN
Package Size (mm)	4x4-0.5
