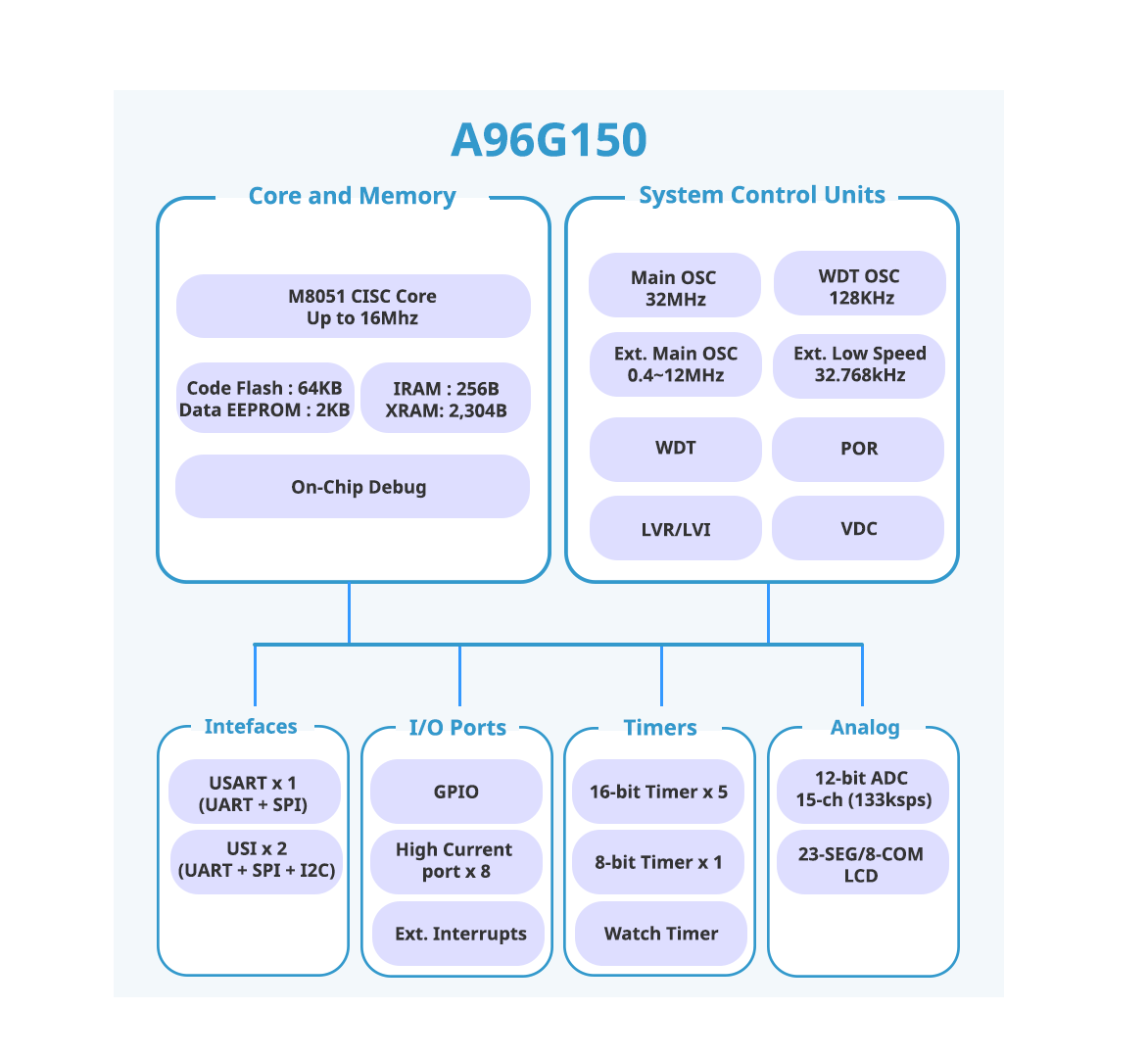

The A96G150 is an advanced CMOS 8-bit microcontroller with a maximum of 64 Kbytes of Flash memory. This powerful microcontroller provides a highly flexible and cost effective solution for a wide range of embedded control applications. The product offers the following features : 64 Kbytes of Flash, 256 Bytes of iRAM, 2304 Bytes of xRAM, 2Kbytes of Data EEPROM, general purpose I/O, basic interval timer, WDT, 8/16-bit timer/counter, 16-bit PPG output, 8-bit PWM output, 16-bit PWM output, watch timer, buzzer driving port, USI, USART, 12-bit ADC, on-chip POR, LVR, LVI, on-chip oscillator and clock circuitry. The A96G150 also supports power saving modes to reduce power consumption.

Product Spec

Availability	Mass Production
Core	8051
Op. Freq. (MHz)	16
Flash (Kbytes)	64
RAM (Kbytes)	2.5
E2P (Bytes)	2048
Pin Count	32
Max I/O Pins	30
Timer (8-bit)
Timer (16-bit)	5
Watch Dog Timer	1
PWM (8-bit)
PWM (10-bit)
PWM (16-bit)	3
3-phase PWM (10-bit)
3-phase PWM (16-bit)
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	15
ADC Speed (ksps)	133.33
Number of OP Amp.
IR Learning Op. AMP
Number of PGA
Number of Comparator
USART (ch)	1
UART (ch)
SPI (ch)
I2C (ch)
I2S (ch)
USI	2
SIO (ch)
LCD Driver	12x8
LED Driver / High current port	8
IR Driver TR	N
HSI Freq. (MHz)	32
HSI Err. (±%) 85	2
HSI Err. (±%) 105
Sub. X-tal Support	Y
Ext. X-tal Support	N
Touch Key (ch)
Key Scan : M-Key
Key Scan : T-Key
ISP	Y
CRC	Y
Carrier Generator
Min Op Voltage (V)	1.8
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	85
Remarks	POR, LVR, LVI, CRC-16
Package	32-LQFP
Package Size (mm)	7x7-0.8
