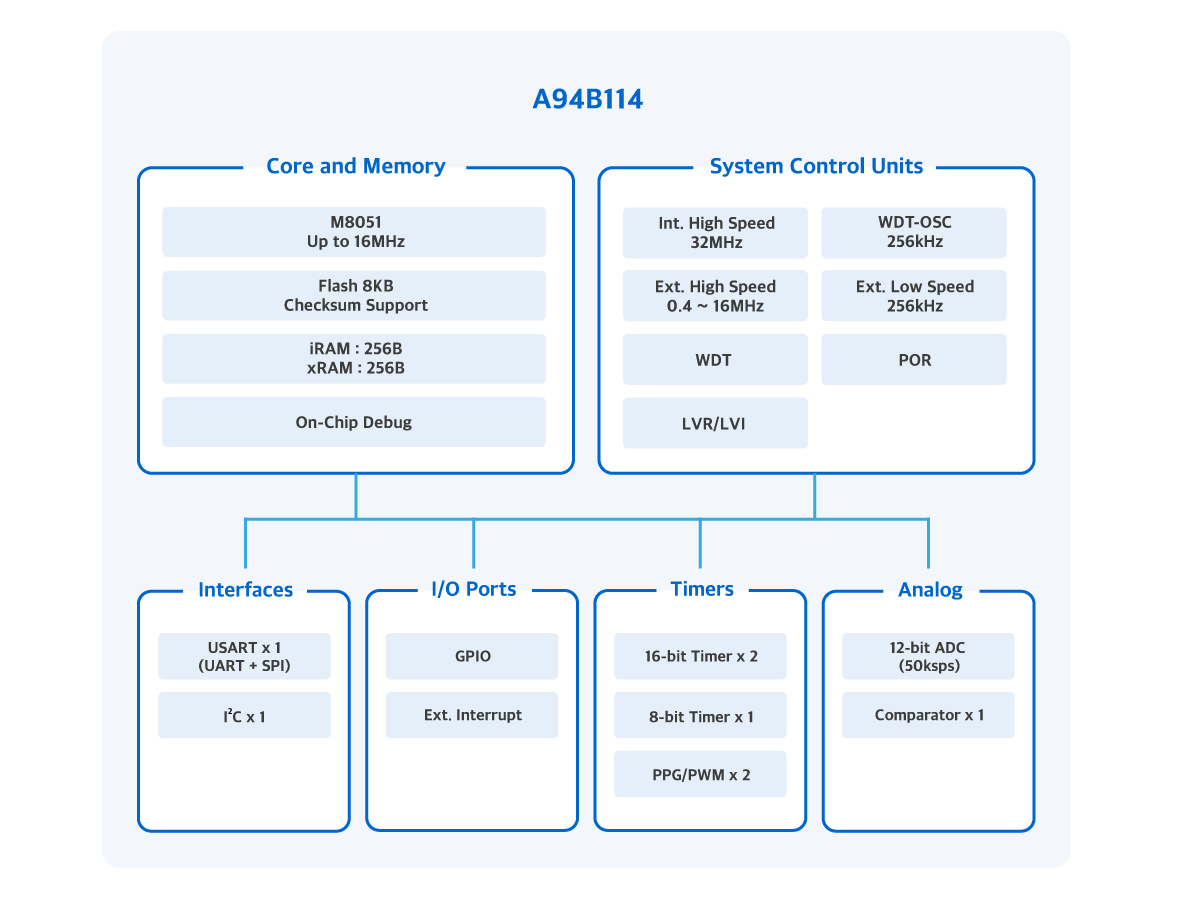

A94B114 is an advanced CMOS 8-bit microcontroller with 8 Kbytes of Flash. This is a powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications. The product provides the following features : 8 Kbytes of Flash, 512 Bytes of SRAM, 16-bit timer/counter, 16-bit PWM with inverters and dead-band control, WDT, 12-bit ADC with LDO, on-chip POR, LVI and LVR, high frequency internal oscillator, low frequency internal oscillator and clock circuitry. A94B114 also supports power saving modes to reduce power consumption.

Product Spec

Availability	Mass Production
Core	8051
Op. Freq. (MHz)	16
Flash (Kbytes)	8
RAM (Kbytes)	0.5
E2P (Bytes)	0
Pin Count	16
Max I/O Pins	14
Timer (8-bit)	1
Timer (16-bit)	2
Watch Dog Timer	1
PWM (8-bit)	1
PWM (10-bit)	0
PWM (16-bit)	2
3-phase PWM (10-bit)	0
3-phase PWM (16-bit)	0
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	8
ADC Speed (ksps)	50
Number of OP Amp.	0
IR Learning Op. AMP	N
Number of PGA	0
Number of Comparator	1
USART (ch)	1
UART (ch)	0
SPI (ch)	0
I2C (ch)	1
I2S (ch)	0
USI	0
SIO (ch)	0
LCD Driver	0
LED Driver / High current port	0
IR Driver TR	N
HSI Freq. (MHz)	32
HSI Err. (±%) 85	3
HSI Err. (±%) 105	0
Sub. X-tal Support	N
Ext. X-tal Support	Y
Touch Key (ch)	0
Key Scan : M-Key	N
Key Scan : T-Key	N
ISP	Y
CRC	Y
Carrier Generator	N
Min Op Voltage (V)	2
Max Op Voltage (V)	5.5
Min Op Temp (℃)	-40
Max Op Temp (℃)	85
Remarks	PPG,WDT
Package	16-SOPN
Package Size (mm)	150mil
